A BETTER BIN STARTS HERE.

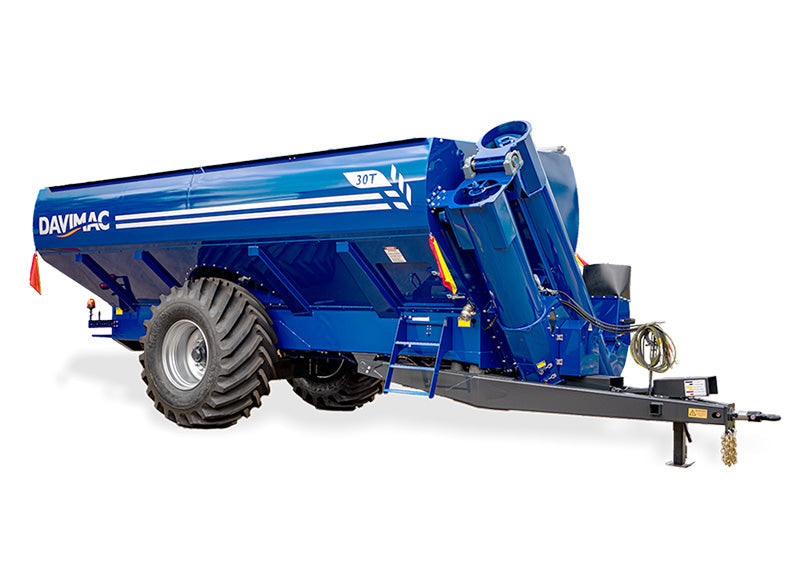

✔ SINGLE AXLE MODELS:

• 25T & 30T capacities.

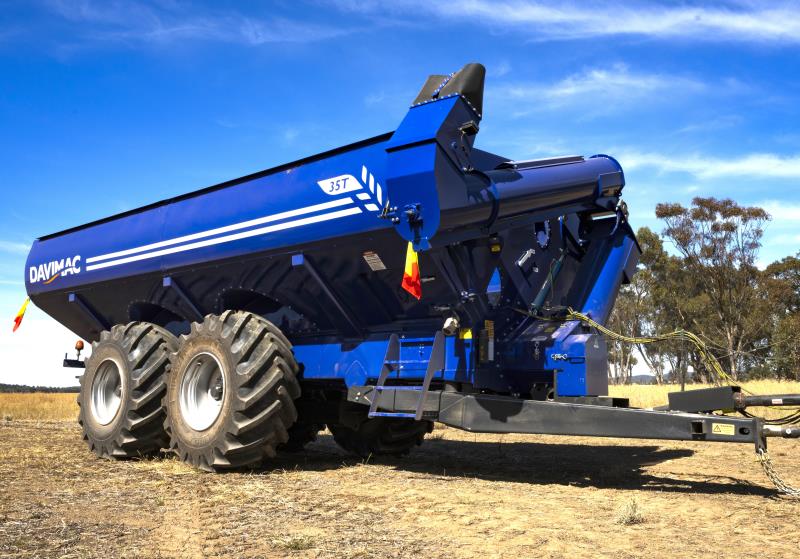

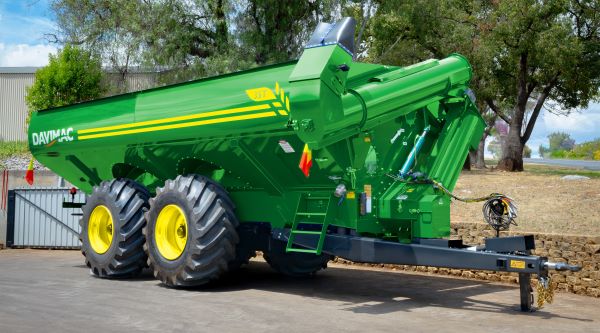

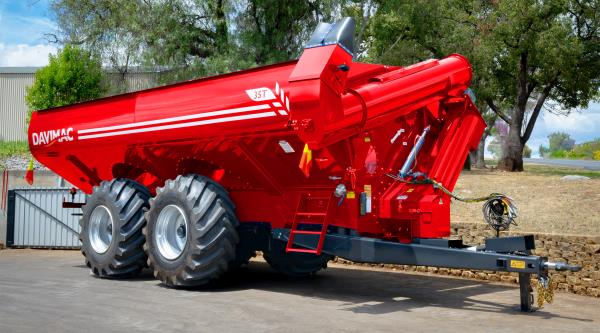

✔ DUAL AXLE MODELS:

• 30T, 35T & 45T capacities.
• 80-tonne axle load rating. [1]
• Floating walking beam with centre-pivot.
• Steering axle with hydraulic lock. [2]
• OPTIONAL: Hydraulic brakes. [3]

✔ MULTIPLE TYRE OPTIONS:

• 900/60-32 20pr HB45 185A8
• 30.5L32 18 pr HD45 167A8 [3]
• 800/65R32 Trojan 185A8/181D (flotation) [4]

✔ FAST UNLOAD AUGER:

• 20" auger models: 12 tonne/min
• 24" auger models: 18 tonne/min
• Hydraulic control of spout angle.
• Adjustable discharge angle & height.
• Ultra-bright LED lights.
• Auger protection guard.
• 10mm flights that resist bowing.
• Single-fold design with additional transport position.
• OPTIONAL: Right-hand side discharge.
• OPTIONAL: Hydraulic auger drive. [5]
• OPTIONAL: 500 mm auger extend. [5]
• OPTIONAL: Auger feed-out chute. [5]

✔ EASY LOAD MONITORING:

• Large gate open/closed indicator easily viewable from the cab.
• See into the bin through two large 6mm perspex windows.
• Confirm auger function through the window in the base of the auger.
• OPTIONAL: Load cells with in-cab readout or Bluetooth app transmitter (Agrimatics Libra Cart).
• OPTIONAL: Camera kit (3 cameras: reverse, top-of auger, inside bin) with 9" in-cab monitor.

✔ 100% AUSTRALIAN OWNED & MADE:
Designed and built in Central West NSW.

✔ LOCALLY SUPPORTED NATIONWIDE:
Extensive national dealer network for local servicing and support.

✔ CTF-STANDARD WIDTHS:
User-adjustable [6] wheel centres from 2.56 to 3.0m for Controlled Traffic Farming.

✔ QUICK GRAIN SAMPLING:
Monitor grain quality on-the-go via the sampling valve in the side of the bin.

✔ SIMPLE | STRONG | DURABLE:

• Strong, curved sides that don't buckle and also look great!
• Large reliable gearbox that will last the test of time.
• User-replaceable bolt-on parts for easy maintenance.
• Carry wheat, grain, rice, corn, peas, beans or even animal feed.

✔ LOW-PROFILE HEIGHT:

• Easier and safer bin filling and loading.
• "Grain Guard" design with 200mm elevated left side prevents grain loss from high-powered headers.
• Wheel arches enable lower centre of gravity for sturdier ride.
• Steep 50° angled bin sides for optimal grain flow to horizontal auger.
• Wheel arches for low-load height.
• No transport escort required for 25T, 30T & 35T models. [7]

✔ RELIABLE UNDERCARRIAGE:

• 12-stud hub axle. One of the strongest hub connections on the market.
• Australian Harvest tyres reduce soil compaction.
• Dual-axle rated to 80 tonnes. Simple and more reliable.
• Less worries during a busy harvest.

✔ SMOOTH OPERATION:

• Cushioned, floating drawbar reduces load shock and machinery wear and tear. See it in action >
• Reduced shunting with an interchangeable ball hitch to better fit all tractor pin sizes. See it in action >
• Dual-axle walking beam enables smooth contour navigation.
• Steering axle reduces impact on soil during tight turns. [2]

✔ HEAVY-DUTY ROLL TARP:
900GSM PVC reinforced polyester roll tarp. UV stabilised and FR treated for weather resistance and heat-welded bonds for maximised durability.

✔ SIMPLE CLEANOUT:
Six linked cleanout doors operated via single lever at the rear of the bin.

✔ EASY BIN ACCESS:
Access ladder, hatch, and foot platforms inside the bin enable convenient accessibility for cleaning and maintenance. See it in action >

✔ TOW ON PUBLIC ROADS:
Each bin includes a weather resistant ‘oversized’ sign, flags, beacons and LED tail lights for safe road transit. [8]

✔ OTHER BIN INCLUSIONS:

• Adjustable Jack Stand
• PTO Shaft
• Toolbox
• Safety Chain

✔ ADDITIONAL OPTIONS:

• OPTIONAL: Heavy-duty rear tow lug combined with light-duty towbar.
• OPTIONAL: Fire-fighting Unit: 400 L water tank with 120 L/min pump and 36 metre hose, OR 9 L fire extinguisher
