Dual-Axle Chaser Bins

508 mm diameter single-fold design with 10 mm thick flights welded around 150 mm pipe.

Absorb bumps when travelling over uneven terrain. Our rubber-cushioned drawbar means less wear and tear on the chassis and an increased service life of both the grain cart and your tractor.

The floating walking beam with central pivot allows smooth navigation of contours whilst ensuring even load distribution along the chassis, reducing compaction effects on your soil.

The distinctive curved sides of a Davimac chaser bin not only look great, but will withstand the stress of a full, heavy load without being prone to buckling. Steep 55° angled bin sides ensure smooth grain flow to the horizontal auger.

One of the lowest on the market, the low overall bin height enables easy loading and reduces the risk of collision from header augers during a busy harvest. The low centre of gravity has the benefit of creating a sturdier ride in the field as well as simplifying road transport.

The undercarriage is designed to be ultra-robust, simple and reliable, eliminating potential points of failure. The Australian engineered Harvest tyres with dual bead construction and heavy ply ratings are attached via a 12-stud hub axle.

QUICK UNLOAD:
The 20", single-fold discharge auger maximises harvest efficiency with an unload speed of 12 tonnes per minute at 1000 RPM (PTO drive). That is 1 tonne every 5 seconds - or a full 35-tonne load (1286 bushels) in the truck in under 3 minutes!

Have your bin built with either left-hand side or right-hand side discharge.

CONTROL THE FLOW:
✔ The hydraulic spout with rubber chute allows you to focus and adjust the flow of grain with complete accuracy and control.

✔ A hydraulic kicker allows easy adjustment of the discharge angle and height of the vertical auger for tricky mother bins, semis or silos.

✔ A shut-off door at the base of the vertical auger allows flow-rate control for fast metering crops and easier cleaning.

✔ Auger function can be easily confirmed and monitored via the perspex window at the base of the vertical auger.

ULTRA-BRIGHT AUGER LIGHTS:
Twin 48W 16 LED 3,000 lumens lamps mounted to the auger spout enable safe and efficient night operation.

STRONG CONSTRUCTION:
The dual-auger design has been built to be rugged and reliable. The 508 mm diameter vertical auger has fully-balanced thick 10 mm flights welded around 150 mm centre pipe, whilst the horizontal cross auger has a 405 mm (16") diameter with 6 mm flights.

The auger protection guard protects the auger from damage and collisions.

LARGE GEARBOX

With robust durability and exceptional performance in demanding harvest conditions, our gearbox ensures reduced maintenance needs and an extended operational lifespan.

GRAIN SAMPLING

Easily collect real-time samples to conduct grain quality tests, promptly detect potential issues, and verify compliance with necessary standards

SIMPLE CLEANOUT

Easily open or close all six cleanout doors with a single accessible lever at the rear, ensuring the cross-auger is thoroughly cleared of grain or contaminants.

CTF ADJUSTABLE WHEEL CENTRES

The wheel centres are user-adjustable from 2.56 m to 3.00 m for Controlled Traffic Farming (CTF) operations.

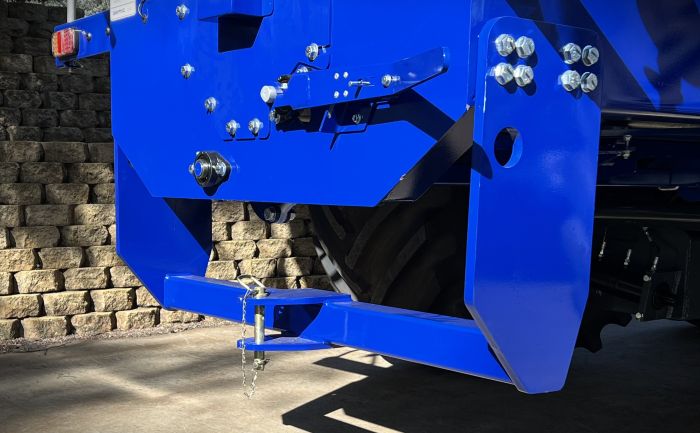

SPHERICAL TOW EYE HITCH

Better match smaller tractor pins with our custom designed spherical tow-eye swivel hitch with interchangeable ball size. This creates a smoother tow with less shunting.

EASY INTERNAL ACCESS

Easy access inside the bin for maintenance and cleaning. Additionally, a welded foot platform enables safe and convenient passage along the internal length of the chaser bin.

GATE INDICATOR & WINDOWS

The large open/closed indicator enables easy visual verification of the gate status from the cab. See into the bin through two large 6mm perspex windows.

HEAVY-DUTY TARP

900GSM PVC reinforced polyester roll tarp. UV stabilised and FR treated for weather resistance, and heat-welded bonds for maximised durability.

ROAD TRANSPORT KIT

Safely tow your bin between fields on public roads with the weather-resistant 'Oversized' sign, high-viz flags, light beacon, and LED tail lights.

✔ INCLUDED WITH BIN

• Adjustable Jack Stand
• Toolbox
• Safety Chain for Hitch
• Davimac Warranty

✔ NO ESCORT REQUIRED
The low profile of our bins simplify road freight transport requirements, saving on the cost of delivery or relocation.

✔ FULLY-REPLACEABLE PARTS
Our 30 tonne and 35 tonne chaser bins have been designed with easy to replace bolt-on parts for simple and straight-forward maintenance.

Spare parts are available to order via our online store.
